Hot-Dip Galvanized Steel Walkway Grating for Heavy Load Construction

Product Categories
Anping yuanhai wire mesh products Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

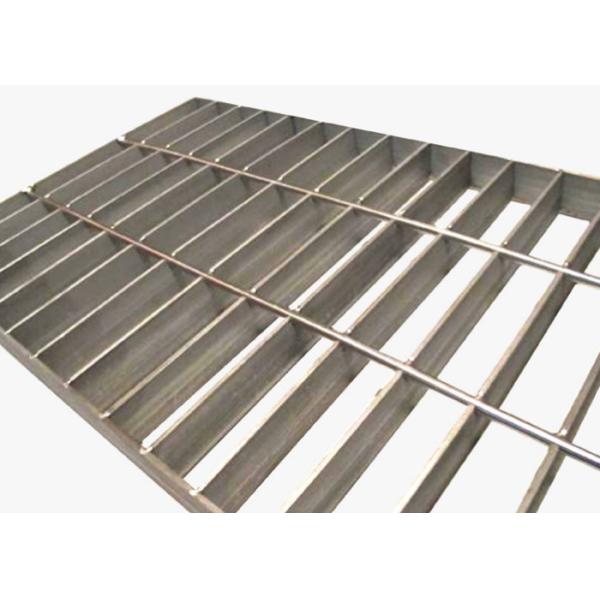

Hot-Dip Galvanized Steel Walkway Grating for Heavy Load Construction

  • 1
  • 2

Popular Sizes : 30x3mm 32x5mm 40x5mm

Keyw Word : Steel Walkway Grating

Sample : For Free

Model : YH-G1

Surface Treatment : Hot-dip Galvanized

Standard : ANSI/NAAMM (MBG531-88)

Usage : Petroleum chemical industry, Power plant

Features : Anti-slip, Corrosion Resistant, Durable

Bearing Bar : 20x5, 25x3, 25x4, 25x5, 30x3, 30x5

Key Word : steel grating

Brand Name : YUANHAI

Model Number : YH-G1

Certification : ISO9001

Place of Origin : CHINA

MOQ : 50Pcs

Price : USD5-26/pc

Payment Terms : T/T,L/C

Supply Ability : 5000Pcs Per Month

Delivery Time : 5-10days

Packaging Details : 1.normally packed in pilling up ways with two pieces of square wood on both upperand bottom sides. 2.acccording to customer's requirements.

Contact Now

Modular Heavy Load Galvanized Bar Grating For Construction Site Flooring System
Product Specifications
Attribute Value
Popular Sizes 30x3mm, 32x5mm, 40x5mm
Model YH-G1
Surface Treatment Hot-dip Galvanized
Standard ANSI/NAAMM (MBG531-88)
Usage Petroleum chemical industry, Power plant
Features Anti-slip, Corrosion Resistant, Durable
Bearing Bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x5
Product Overview

Engineered for extreme construction environments, our Modular Steel Walkway Grating delivers instant-access flooring that withstands 10-ton vehicle loads while providing slip-resistant safety. Featuring bolt-free clamping technology and hot-dip galvanized construction, this system assembles 3x faster than welded alternatives - ideal for high-traffic zones like crane paths, formwork decks, and temporary access bridges.

Technical Specifications
Parameter Standard Heavy-Duty
Material Q235 Carbon Steel ASTM A36 Steel
Coating 300g/m² HDG (ISO 1461) HDG + Epoxy Coating
Load Capacity 5,000 kg/m² 10,000 kg/m²
Panel Size 1m × 3m 1.5m × 6m (Custom)
Mesh Type 30×3mm Serrated 40×5mm Grit Surface
Deflection Limit Span/200 Span/250
Slip Rating R11 (DIN 51130) R13 (Oil/Wet)
Compliance OSHA 1910.23, EN 1090 ANSI/ASCSE 7-16
Key Advantages
  • Rapid Deployment Technology: Tool-free clamps assemble 1m² in under 2 minutes with interlocking joints requiring no welding/bolting. Adjustable feet provide ±150mm height compensation for uneven ground.
  • Unmatched Durability: Features reinforced bearing bars (8mm thick) that survive forklift impacts, zinc-aluminum coating that resists concrete slurry corrosion, and operational range from -40°C to 120°C.
  • Safety Engineered: Grit-embedded surface (0.8mm roughness depth) with 100% fall protection at joints (tested to EN ISO 14122).
Construction Applications
Application Solution Benefit
Tower Crane Access HDG 40×5mm panels Supports 12-ton mobile cranes
Bridge Formwork Epoxy-coated 1.5m×6m panels Prevents concrete adhesion
Excavation Walkways Adjustable leg system Safe slopes up to 30°
Temporary Scaffolding Clip-on guardrails Meets OSHA fall arrest
Heavy Equipment Paths 10,000 kg/m² capacity Handles loaded concrete trucks
Manufacturing Process
  • Laser Cutting: 6kW fiber laser (±0.2mm precision)
  • Robotic Bending: 1,200-ton CNC press brake (angle tolerance ±0.5°)
  • Galvanizing: 450°C zinc bath (300g/m² min. coating)
  • Anti-Slip Treatment: Grit blasting + electrostatic epoxy bonding
  • Quality Assurance: 3D scanning for flatness, 150% overload testing, salt spray test >2,000hrs (ASTM B117)
Frequently Asked Questions
How to handle curved surfaces?

Radially-cut panels available (min. radius 1.5m) with custom clamps.

Can it withstand cement truck spillage?

Yes - epoxy-coated version cleans with high-pressure water.

Weight per square meter?

30kg/m² (standard) vs. 80kg/m² for concrete alternatives.

Maintenance during use?

Weekly rinse with water - no brushing required.

Reusability across projects?

400+ relocations possible - we provide refurbishment kits.

Hot-Dip Galvanized Steel Walkway Grating for Heavy Load Construction Hot-Dip Galvanized Steel Walkway Grating for Heavy Load Construction
